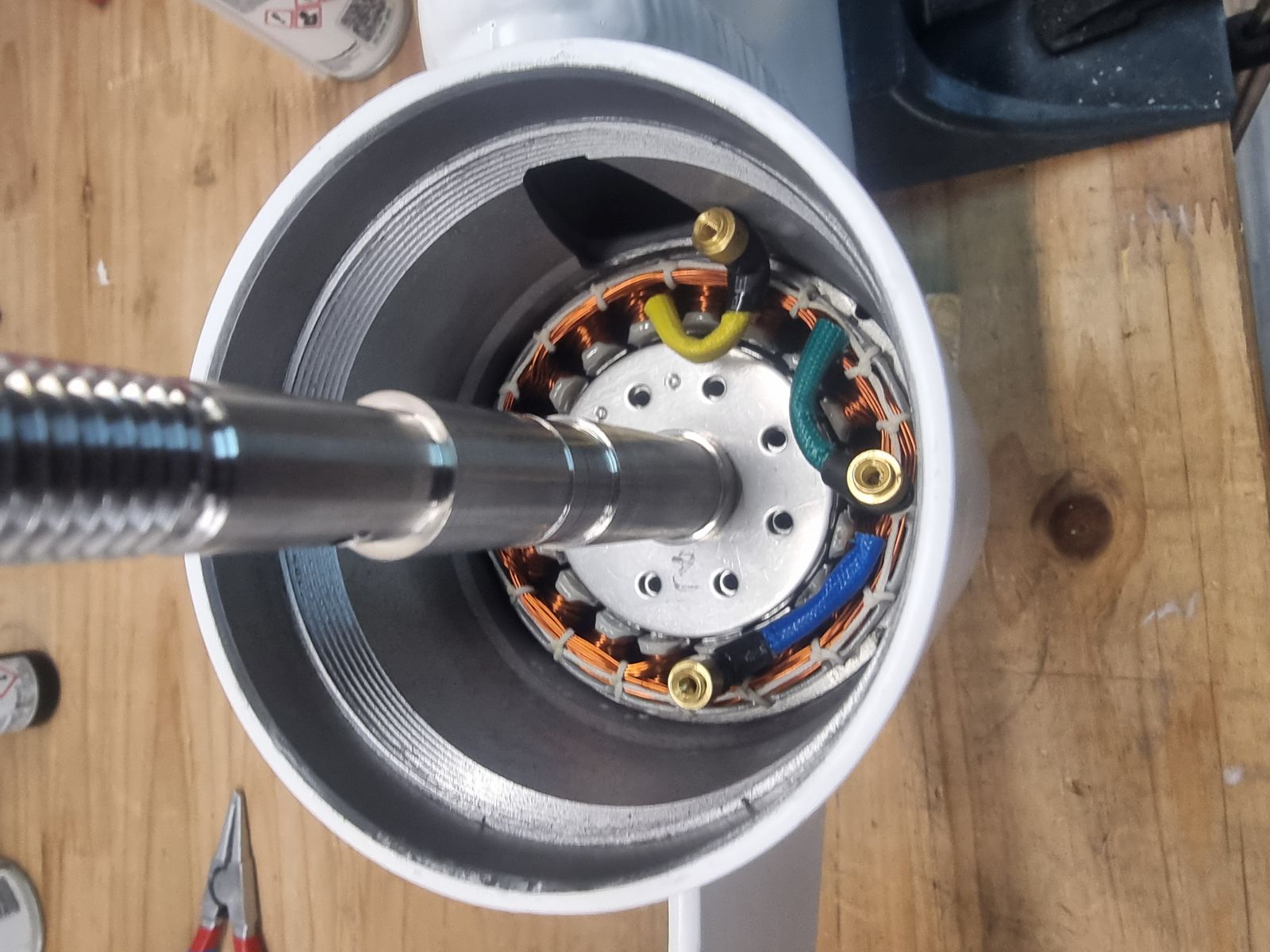

DT-ASM-012 STEP 12 - Insert rotor into motor housing

Tools:

• No tools required.

Installing parts:

• Rotor (100020002)

Procedure:

1. Insert the rotor into the motor housing.
2. Insert the rotor bearing into the designated hole in the bottom of the housing.
3. Check the insertion depth.
4. The top of the rotor magnets must be in line with the steel laminations.

WARNING

The rotor contains strong magnets. Keep fingers clear of pinch points during insertion.
