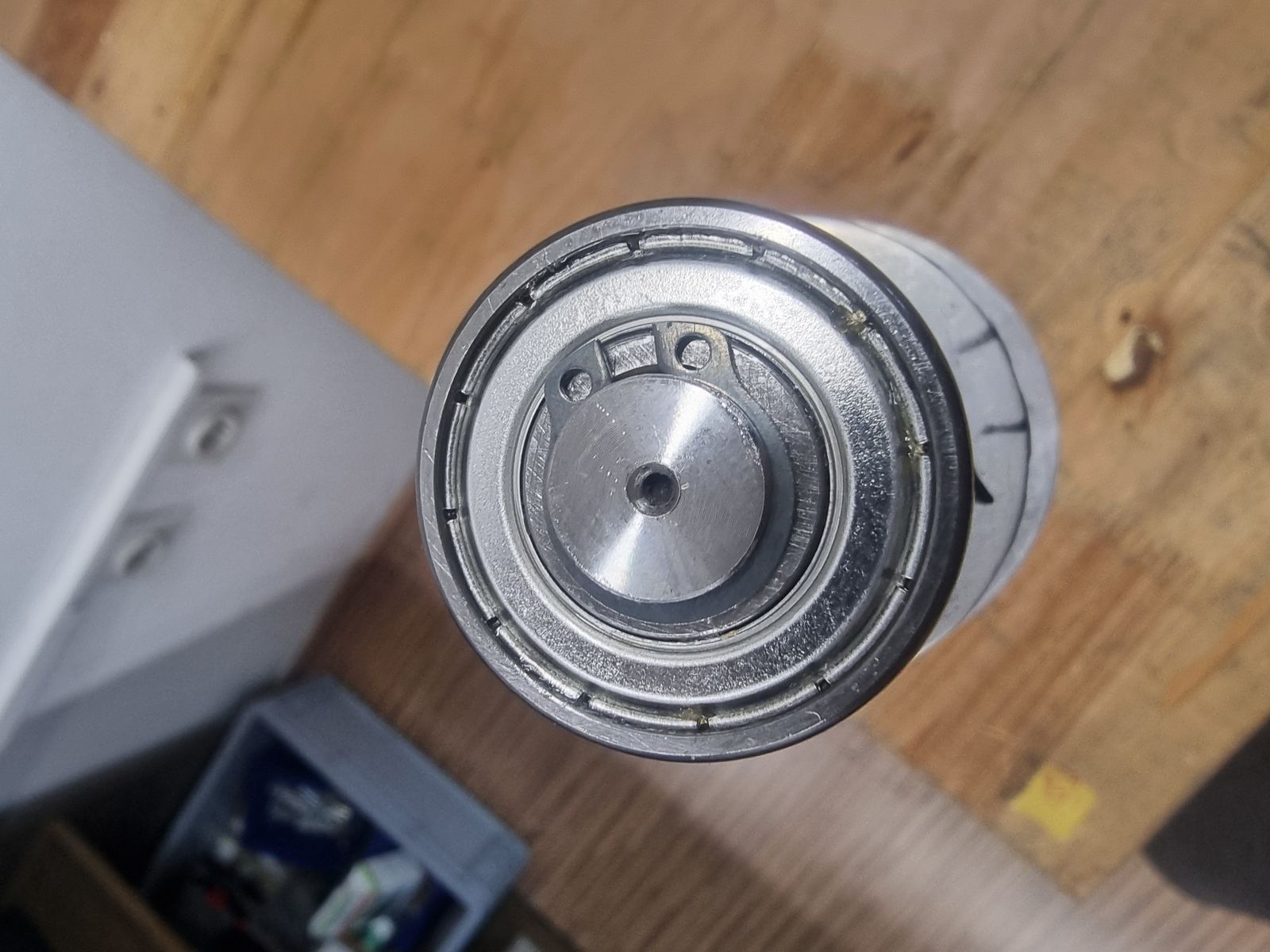

DT-ASM-010 STEP 10 - Install external circlip

Tools:

• Circlip pliers

Installing parts:

• External circlip 12 (012010004)

Procedure:

1. Mount the circlip using circlip pliers.
2. Check that the circlip is fully seated.

CAUTION

Make sure the circlip is fully seated in the groove before continuing.
