Tools:
- Ratchet with Torx bit
Consumables:
Installing parts:
- Mounting screw
- Thrust pad
- Retaining screw and washer
Procedure:

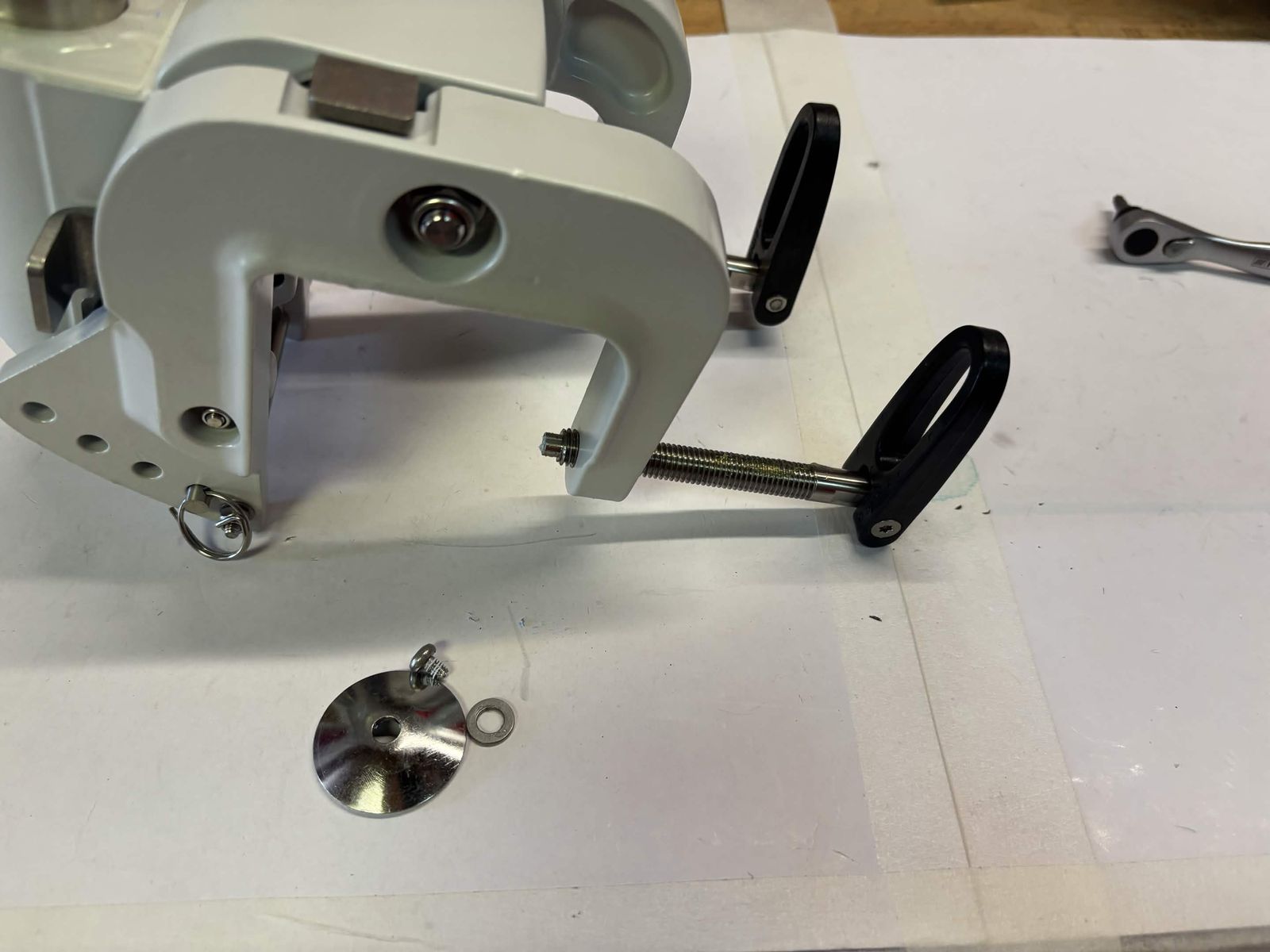

- Insert the mounting screw into the transom bracket clamp.

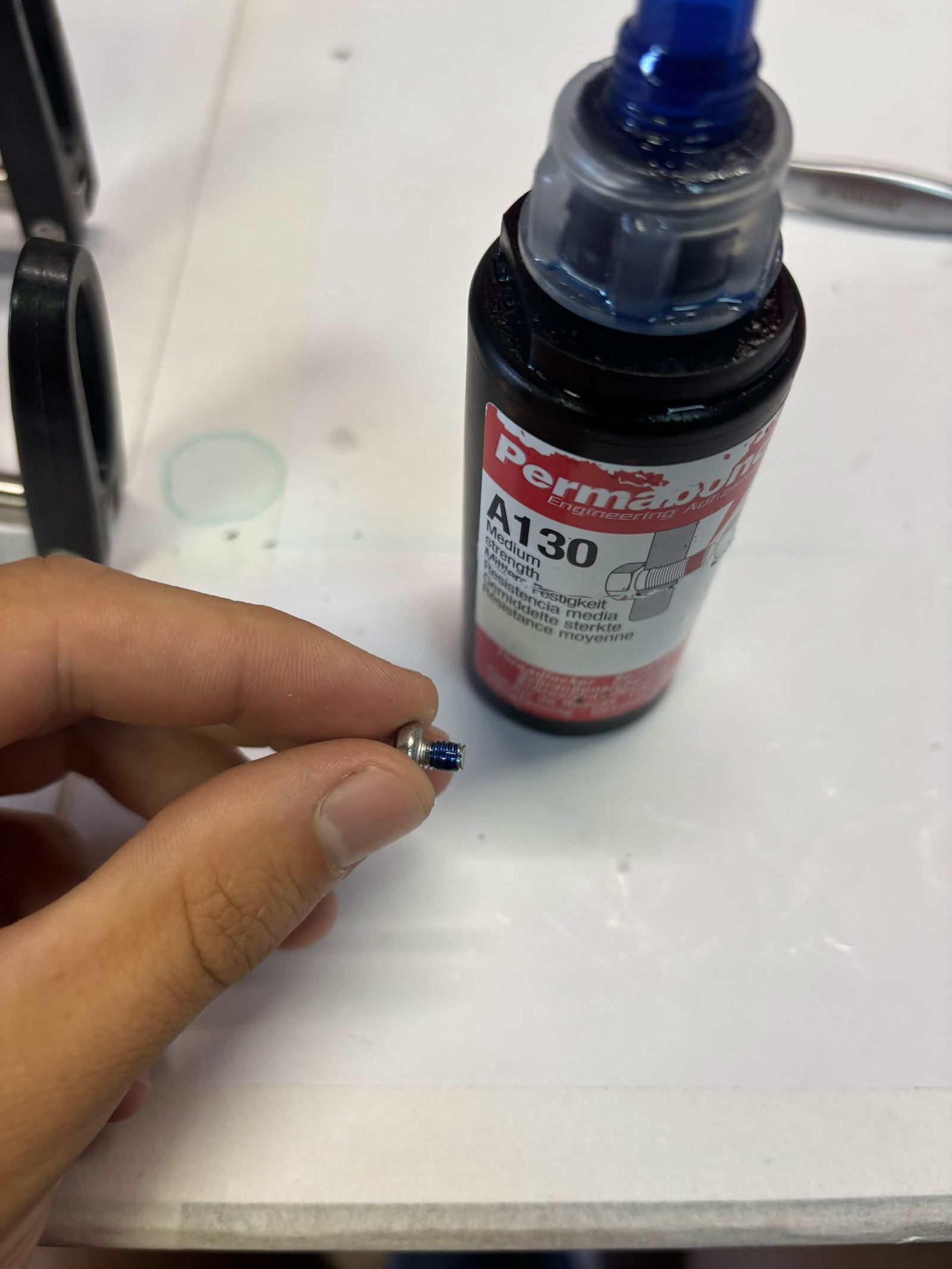

- Apply Permabond A130 to the retaining screw threads.

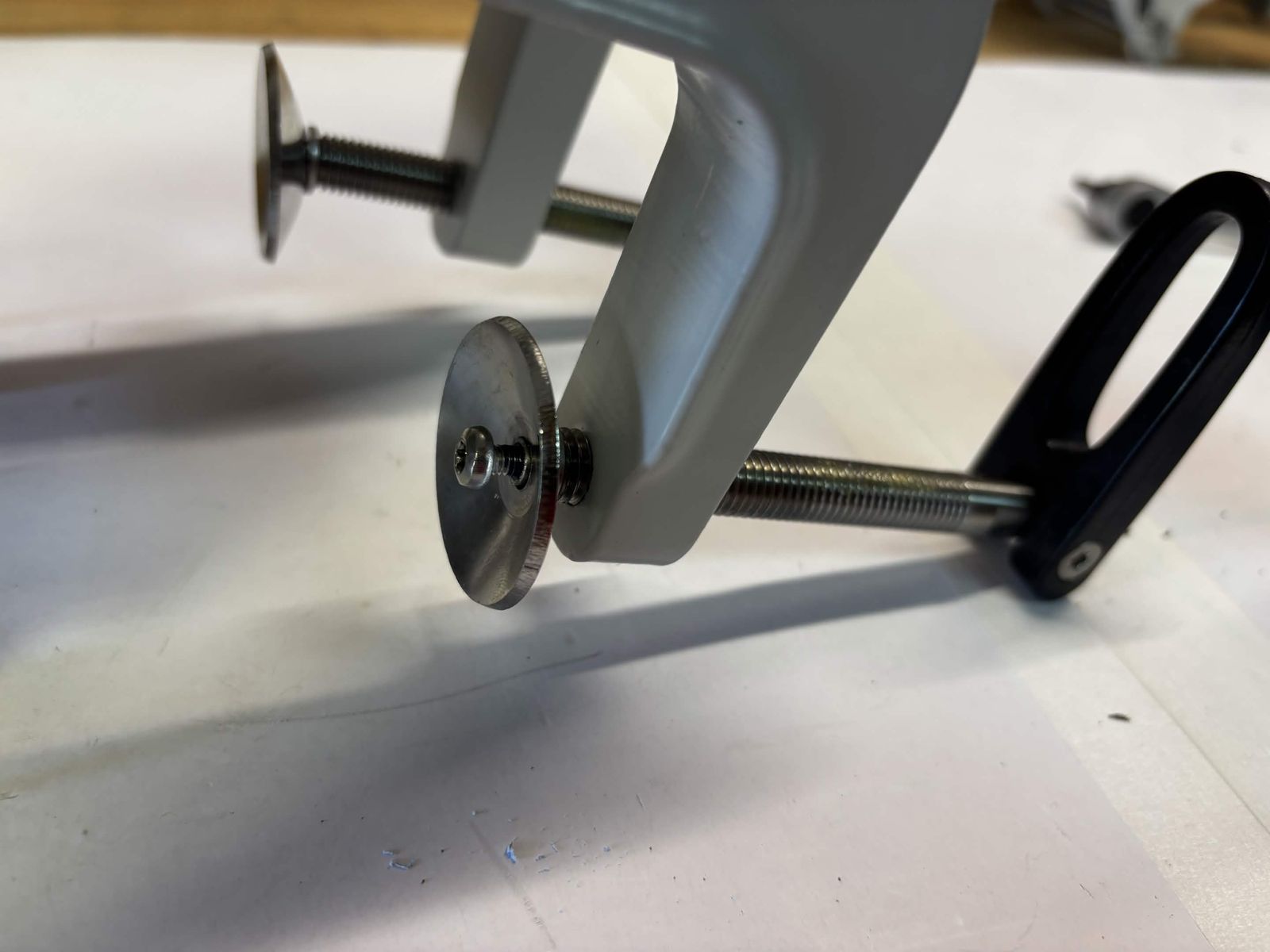

- Fit the thrust pad onto the tip of the mounting screw and install the retaining screw and washer.

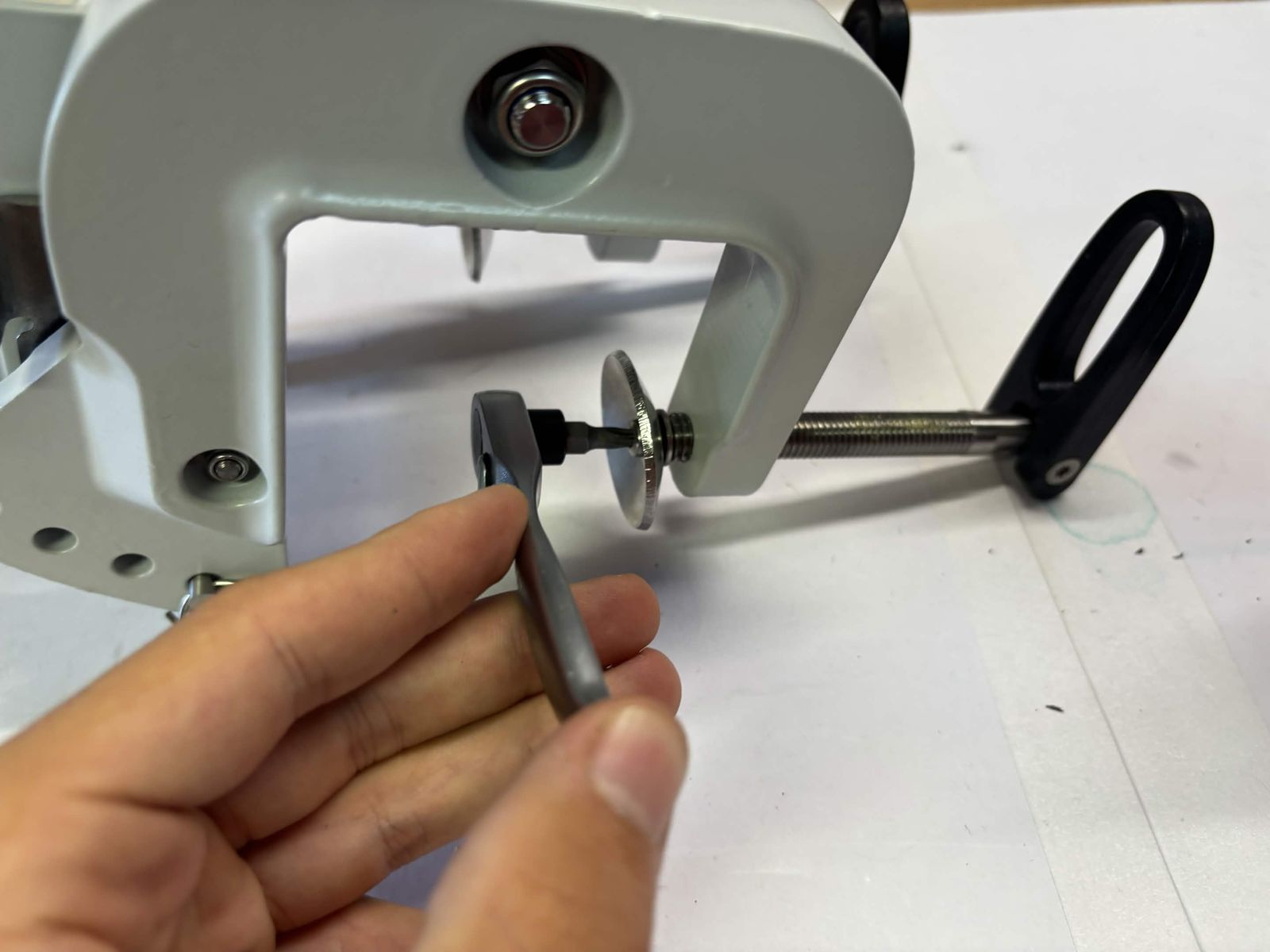

- Tighten the retaining screw with the Torx bit ratchet.
TODO
Confirm part numbers for the mounting screw, thrust pad, and retaining screw/washer, the exact Torx bit size, and the tightening torque value.
