This short procedure reuses existing service step pages. Edit the referenced step pages to update this procedure everywhere.

WARNING

Read Safety instructions before starting.

Remove the kill switch before starting any service procedure to prevent accidental motor start.

Required tools

Ratchet with Torx bit

Required parts and consumables

🗑 Mounting screw
Thrust pad
Retaining screw and washer
Permabond A130 (010010005)

Disassembly

TB-DIS-002 DISASSEMBLY STEP 2 - Remove mounting screw

Tools:

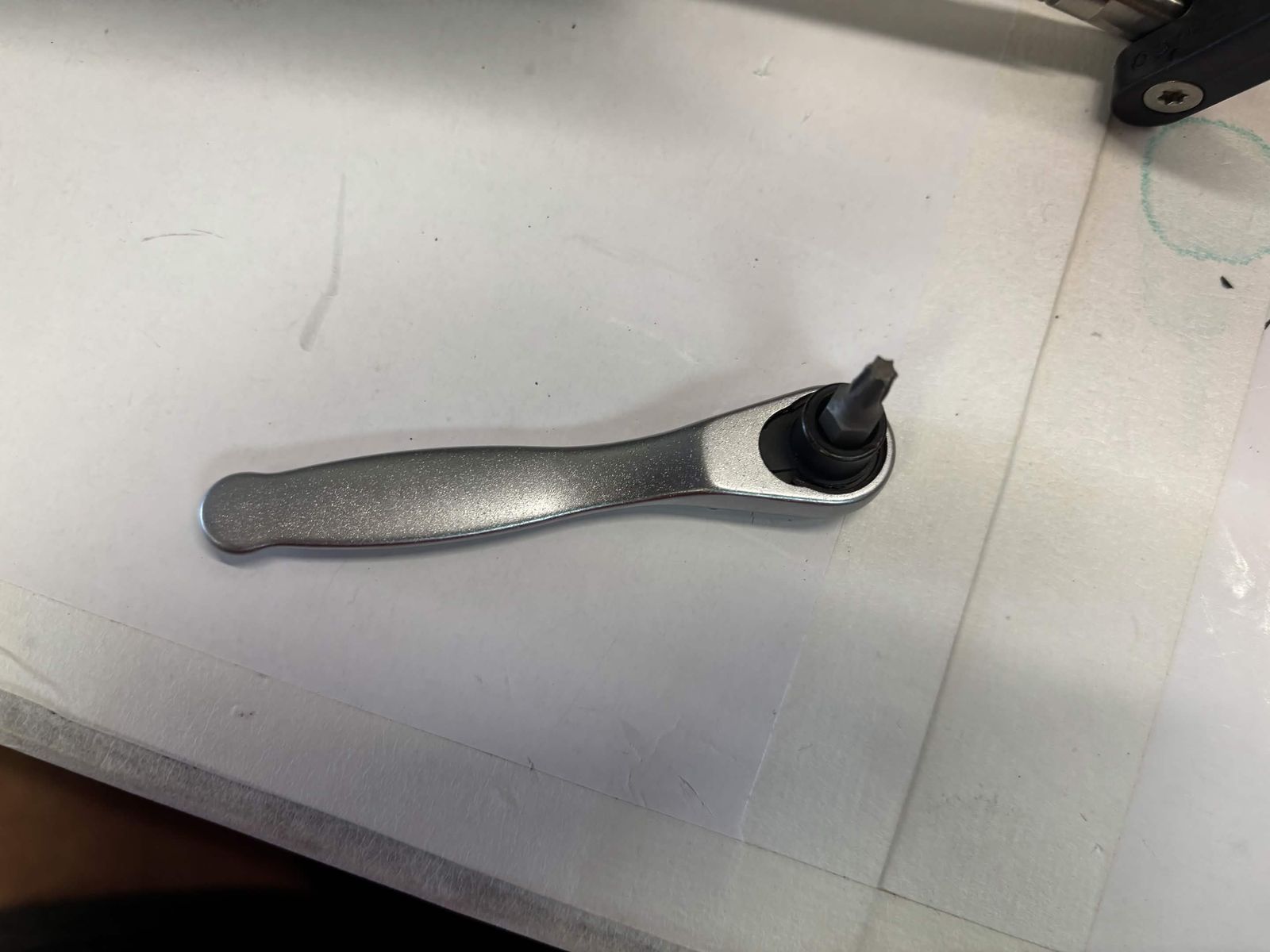

Ratchet with Torx bit

Removing parts:

🗑 Mounting screw

Procedure:

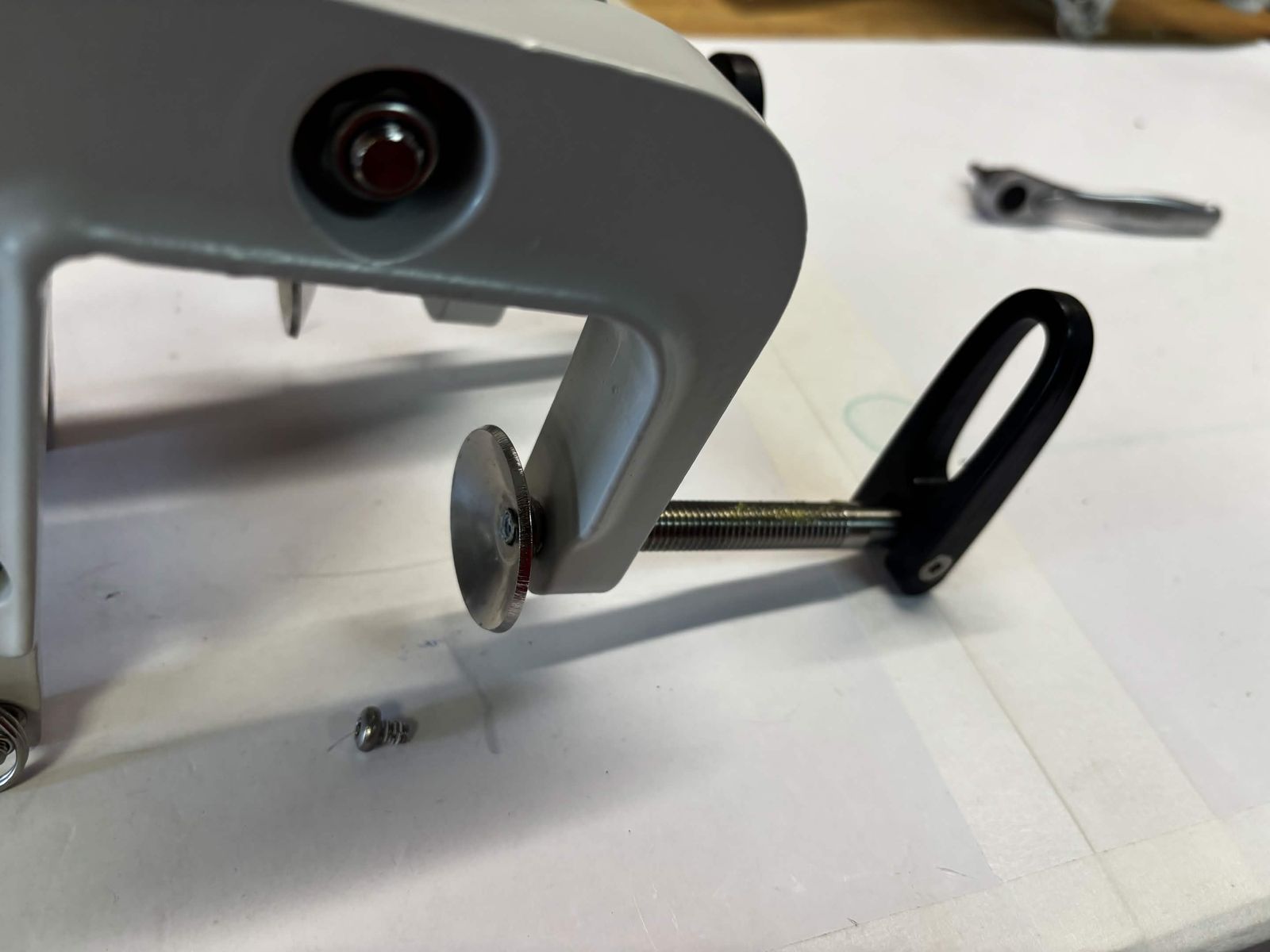

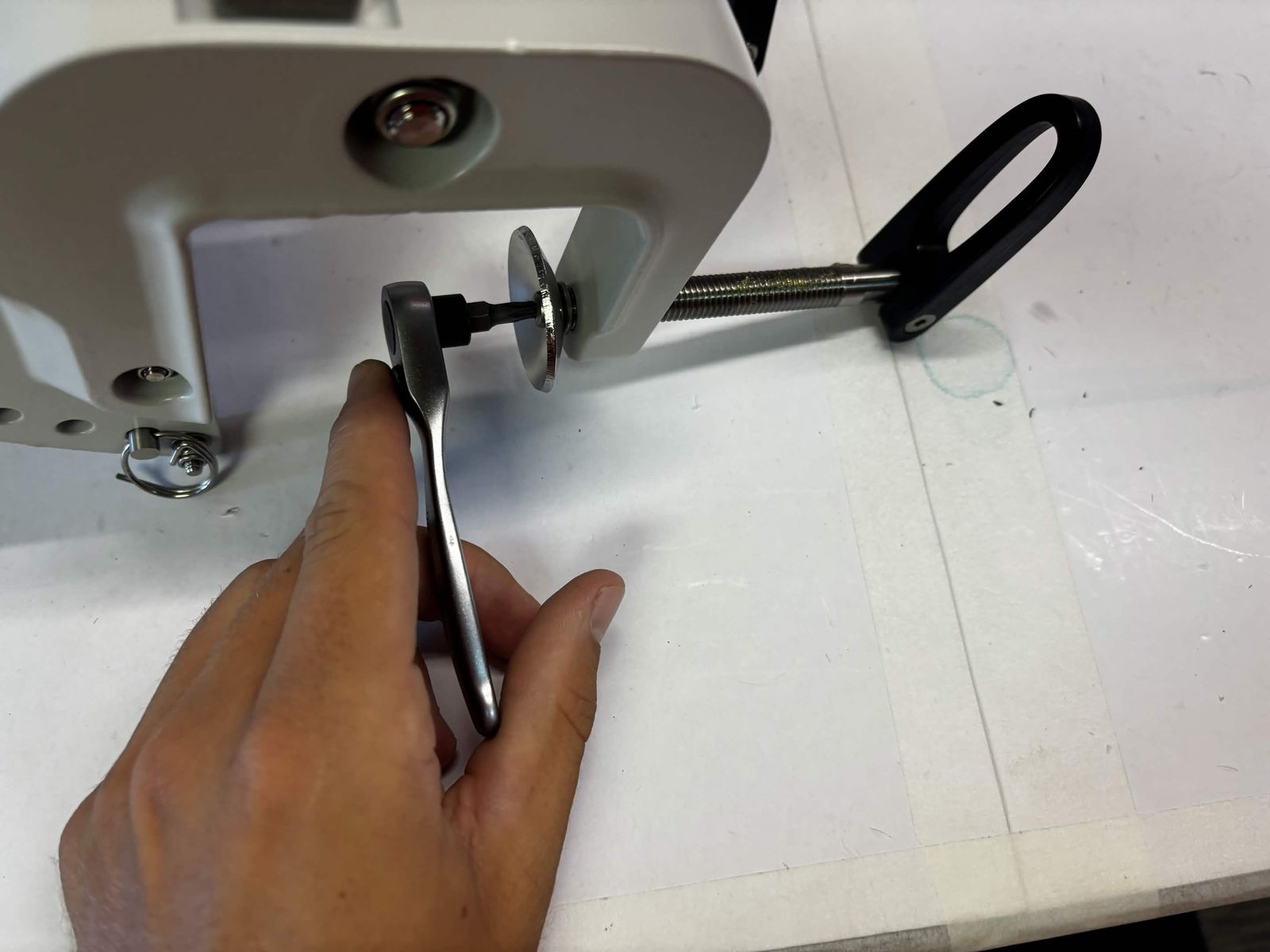

Unscrew the small retaining screw and washer holding the thrust pad on the tip of the mounting screw.

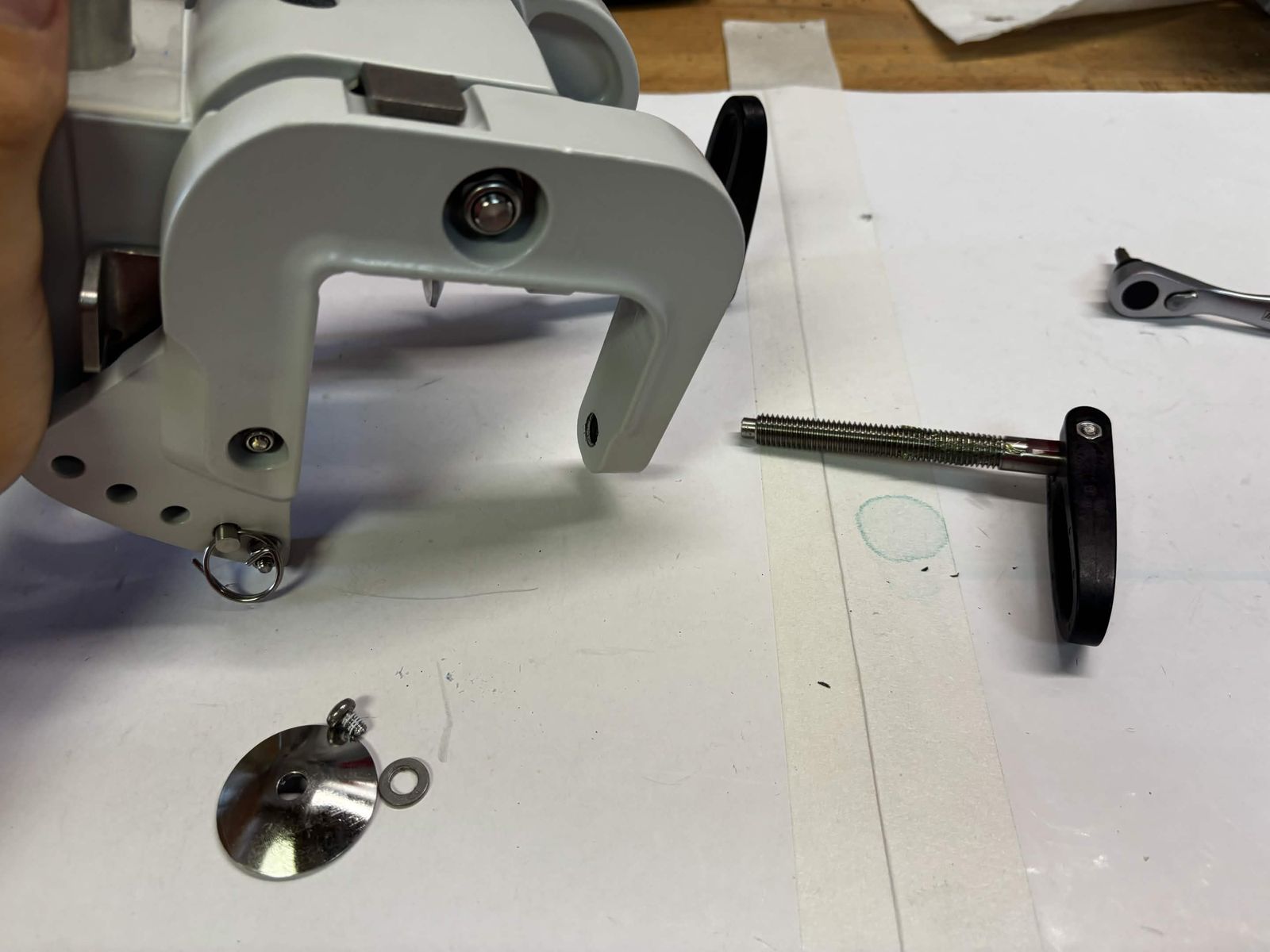

Remove the thrust pad from the mounting screw.

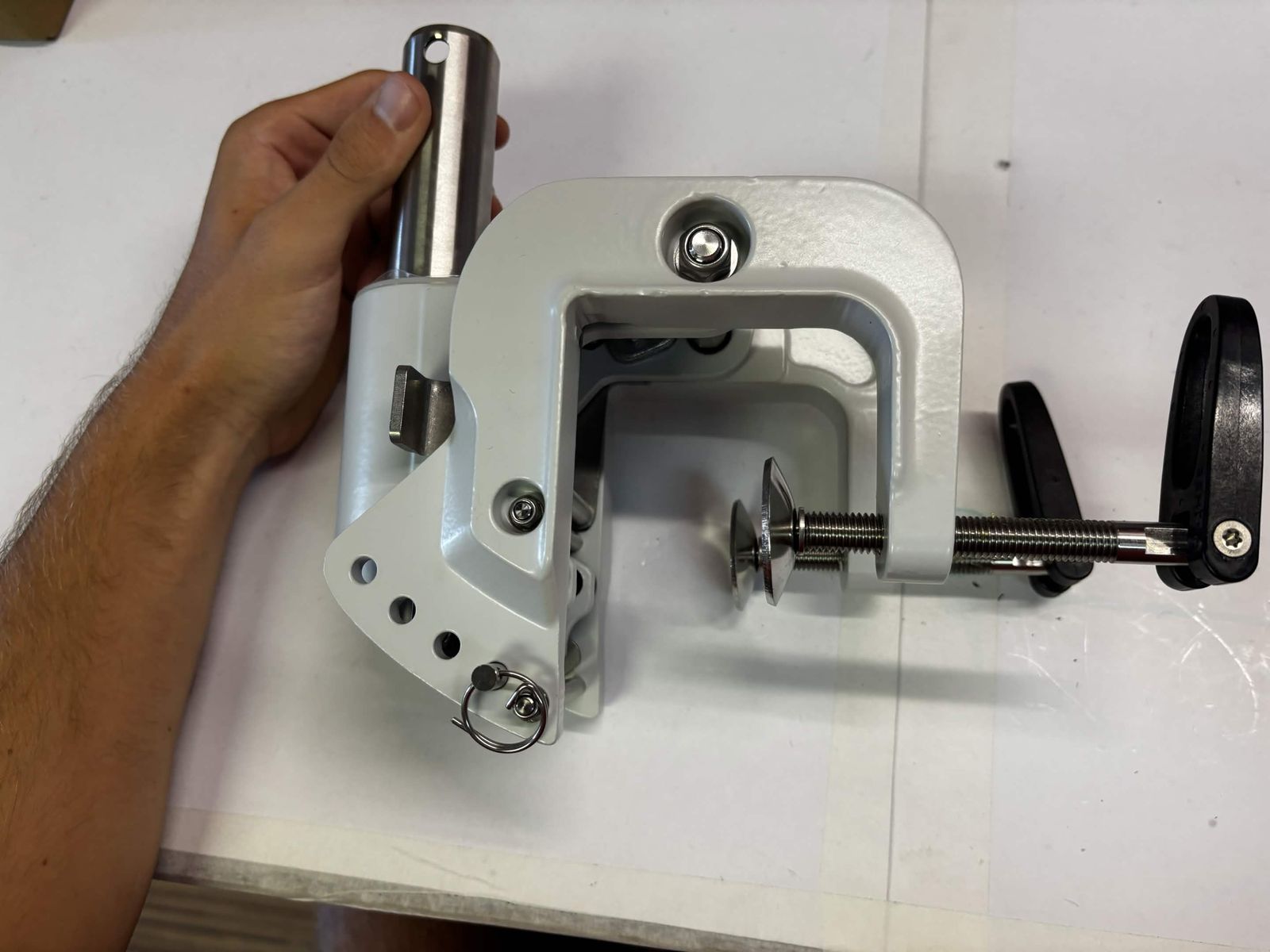

Withdraw the mounting screw from the transom bracket clamp.

TODO

Confirm part numbers for the mounting screw, thrust pad, and retaining screw/washer, and the exact Torx bit size.

Link to original

Reassembly

TB-ASM-002 ASSEMBLY STEP 2 - Install mounting screw

Tools:

Ratchet with Torx bit

Consumables:

Permabond A130 (010010005)

Installing parts:

Mounting screw

Thrust pad

Retaining screw and washer

Procedure:

Insert the mounting screw into the transom bracket clamp.

Apply Permabond A130 to the retaining screw threads.

Fit the thrust pad onto the tip of the mounting screw and install the retaining screw and washer.

Tighten the retaining screw with the Torx bit ratchet.

TODO

Confirm part numbers for the mounting screw, thrust pad, and retaining screw/washer, the exact Torx bit size, and the tightening torque value.
