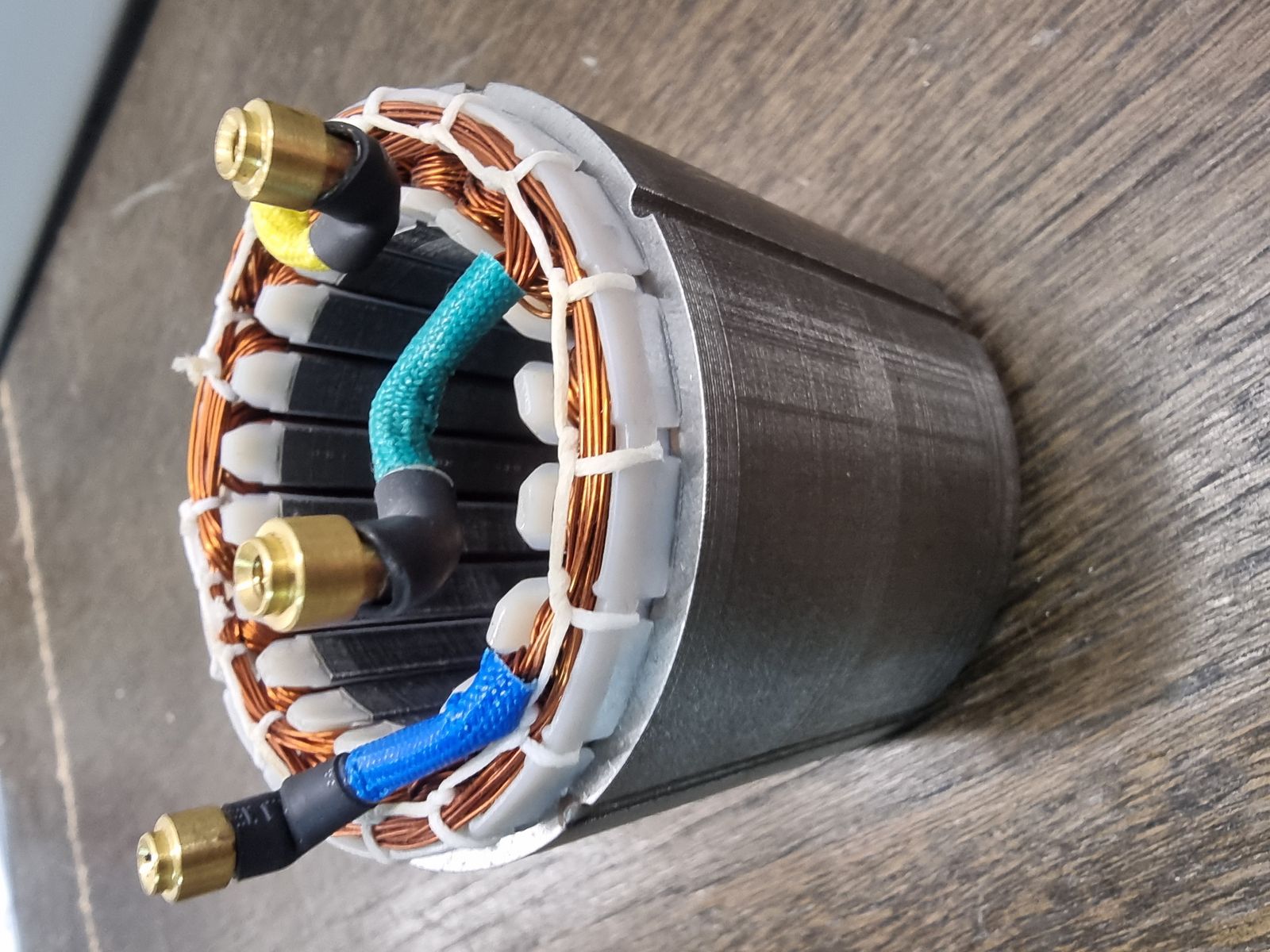

DT-ASM-003 STEP 3 - Inspect stator

Tools:

• No tools required.

Installing parts:

• Stator (100030002)

Procedure:

1. Inspect the stator for broken wires.
2. Inspect for exposed winding wires.
3. Inspect for uncut threads.
4. Inspect for damaged insulation.
5. Clean any debris from the stator.
6. Bend the wires to align them with the motor controller terminals.

CAUTION

Do not damage the winding insulation when bending the stator wires.
