Tools:
- No tools required.
Installing parts:
- Button Interface RemigoOne NEO DZ-GQ22-11E-B-5V-S-FP IP67 with engraved arrow (707010003)
- PCBA Interface RemigoOne NEO V2.2 (701010009)
Procedure:

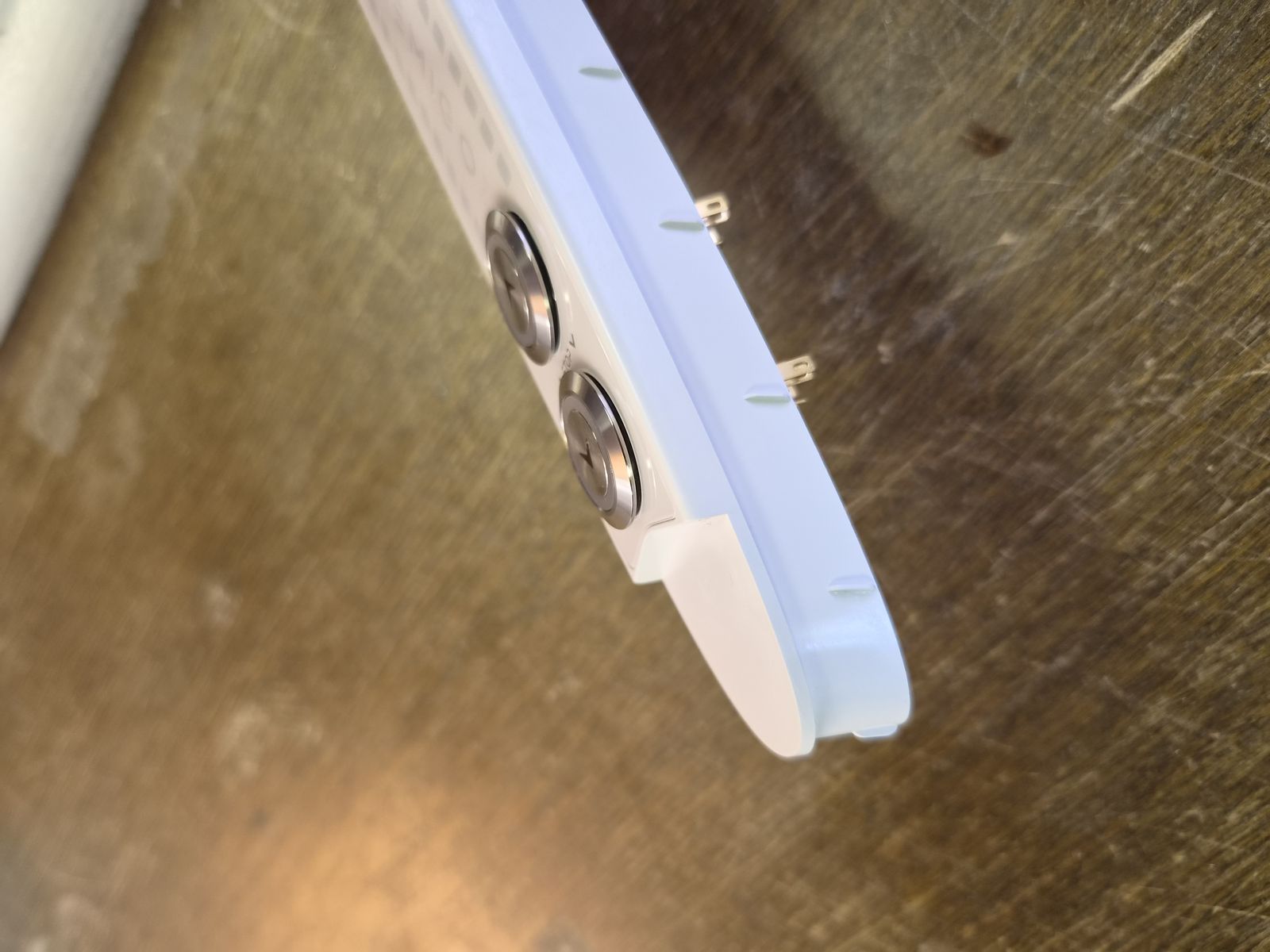

- Insert the two buttons into the button holes from the outside of the interface, with the engraved arrow facing the correct direction (up/down).

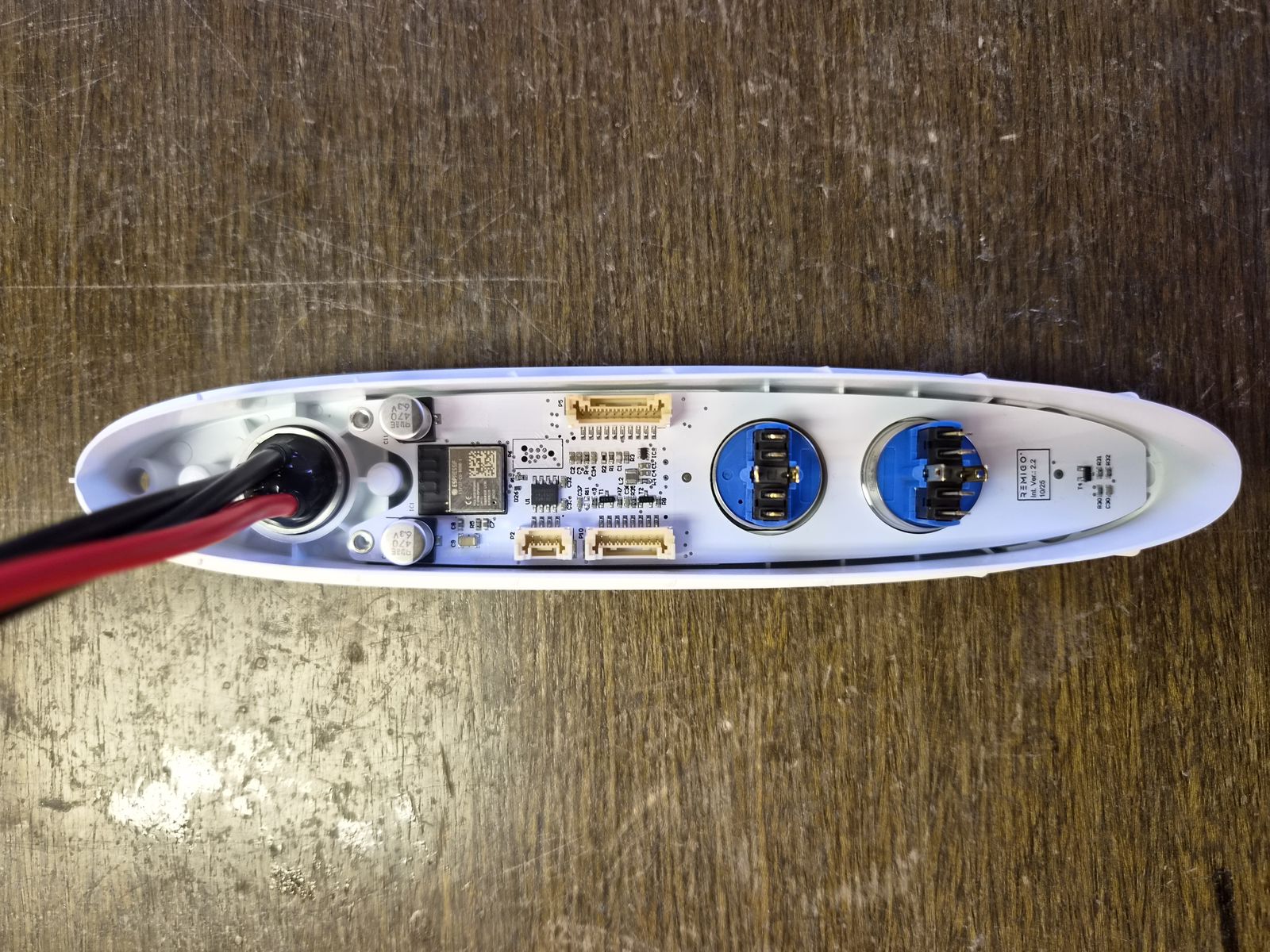

- Position the PCBA inside the interface housing, aligning the button connectors with the PCBA button sockets.
NOTE
The two buttons are not interchangeable. Verify the up/down arrow direction matches the printed icons on the interface housing before proceeding.
