This short procedure reuses existing service step pages. Edit the referenced step pages to update this procedure everywhere.
WARNING
Read Safety instructions before starting.
- Remove the kill switch before starting any service procedure to prevent accidental motor start.
Required tools
- Socket wrench
Required parts and consumables
- Mounting screw handle
- Permabond A130 (010010005)
Disassembly

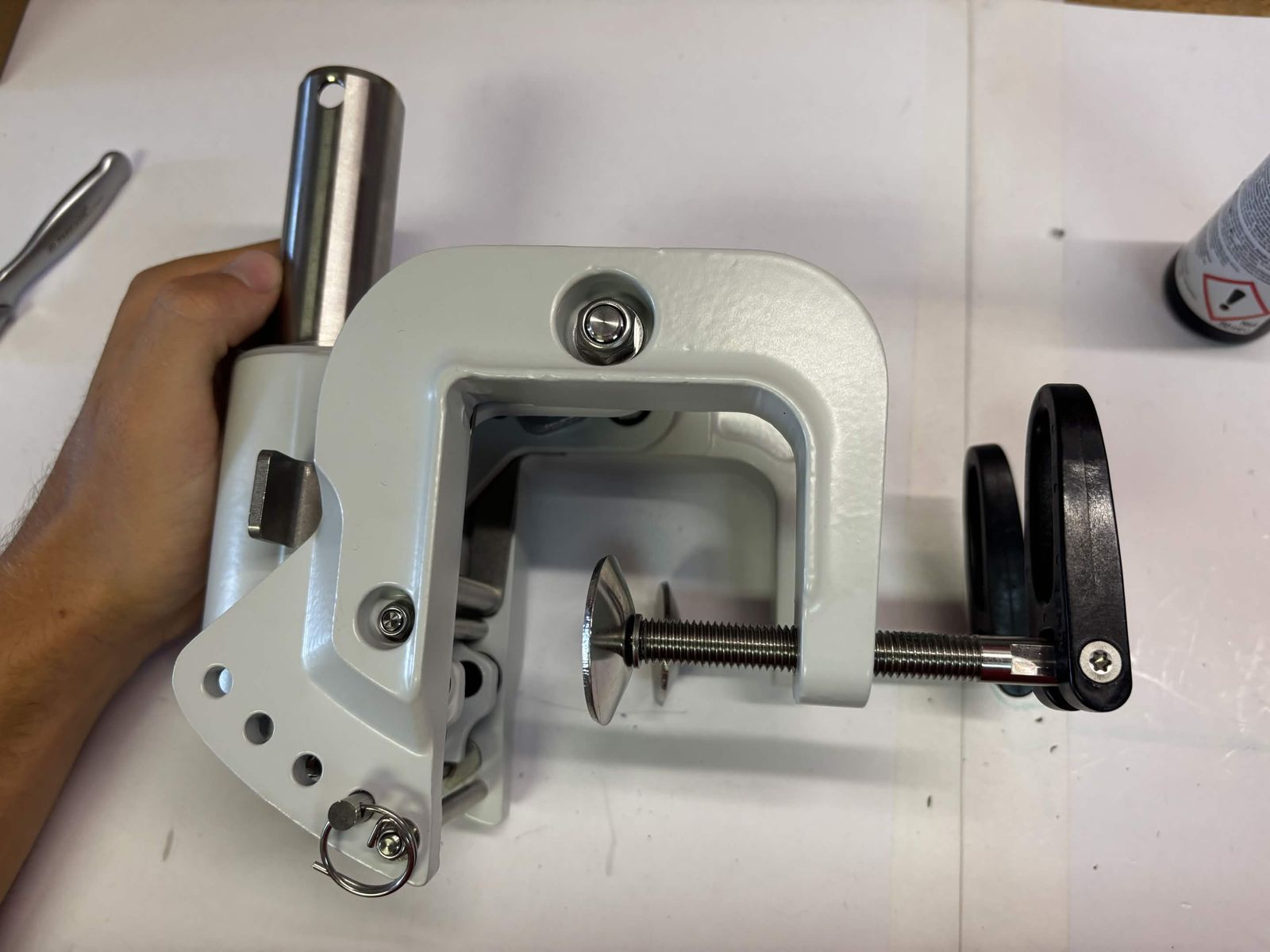

TB-DIS-001 DISASSEMBLY STEP 1 - Remove mounting screw handle
Tools:
- Socket wrench
Removing parts:
- 🗑 Mounting screw handle pivot nut
Procedure:

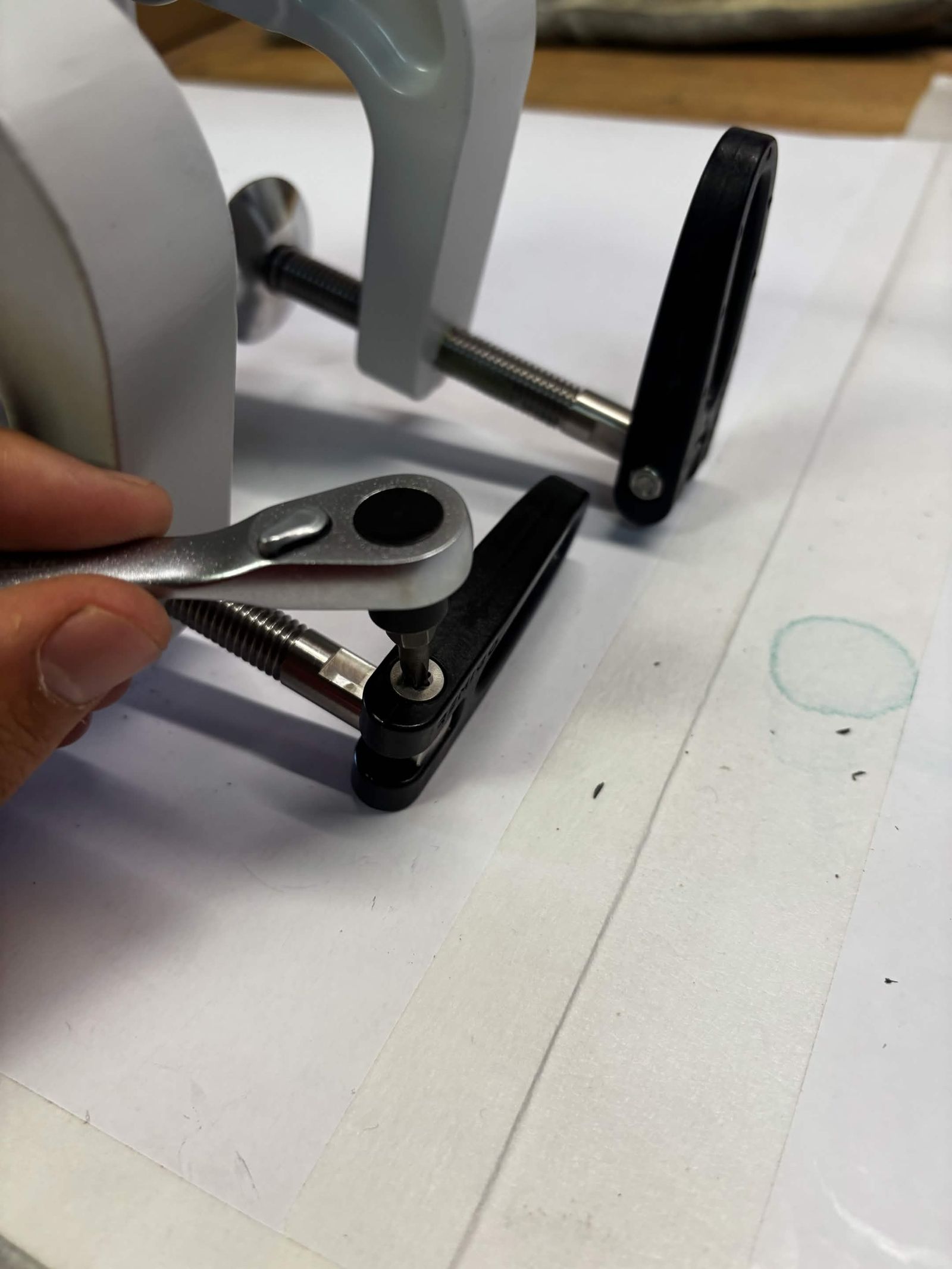

- Unscrew the pivot nut joining the two handle halves on the mounting screw.

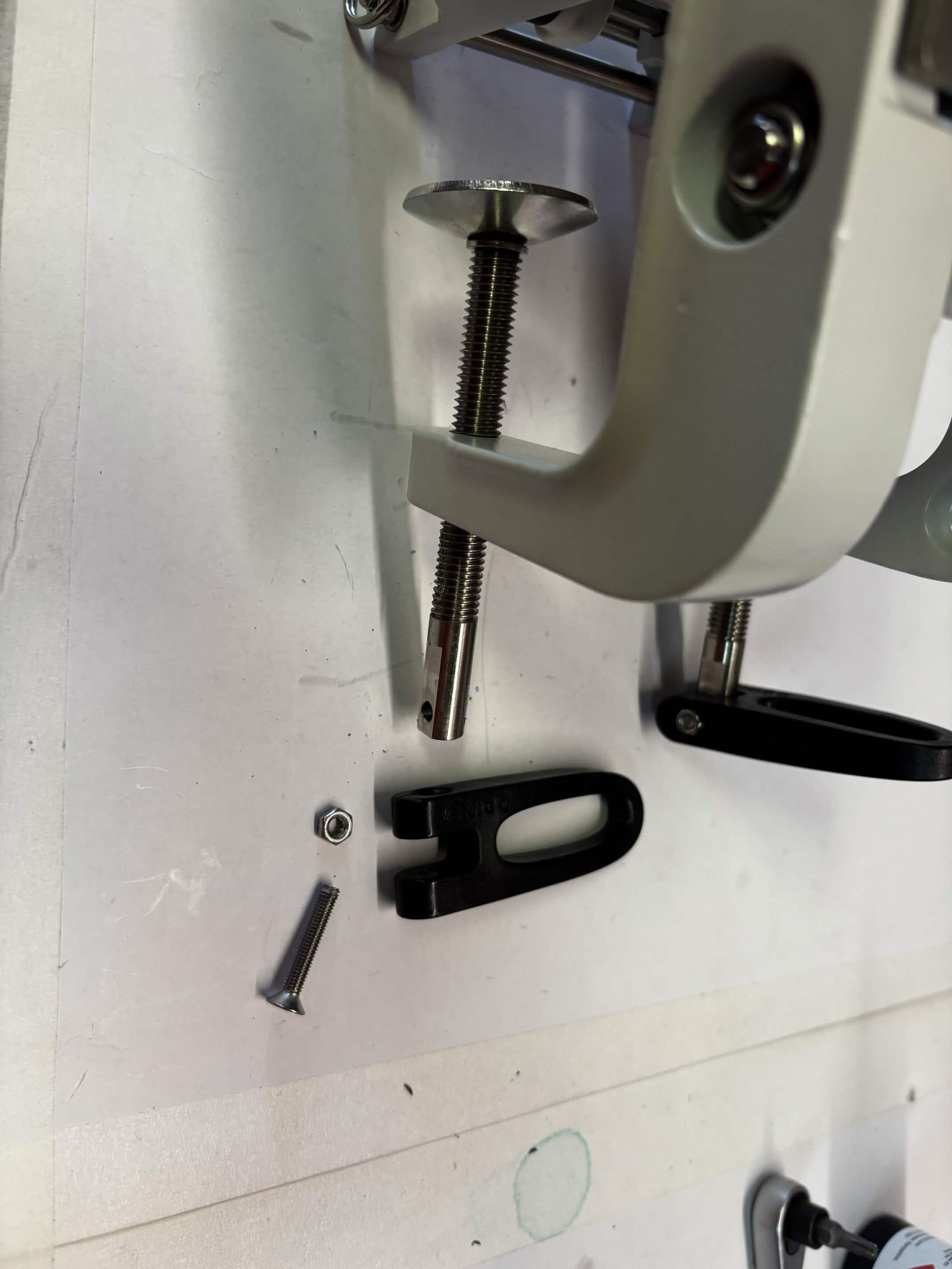

- Remove the handle halves and pivot screw from the mounting screw.
Link to originalTODO
Confirm part numbers for the mounting screw handle halves and pivot screw/nut, and the exact socket/hex size used.
Reassembly
TB-ASM-001 ASSEMBLY STEP 1 - Install mounting screw handle
Tools:
- Socket wrench
Consumables:
Installing parts:
- Mounting screw handle
- Mounting screw handle pivot nut
Procedure:

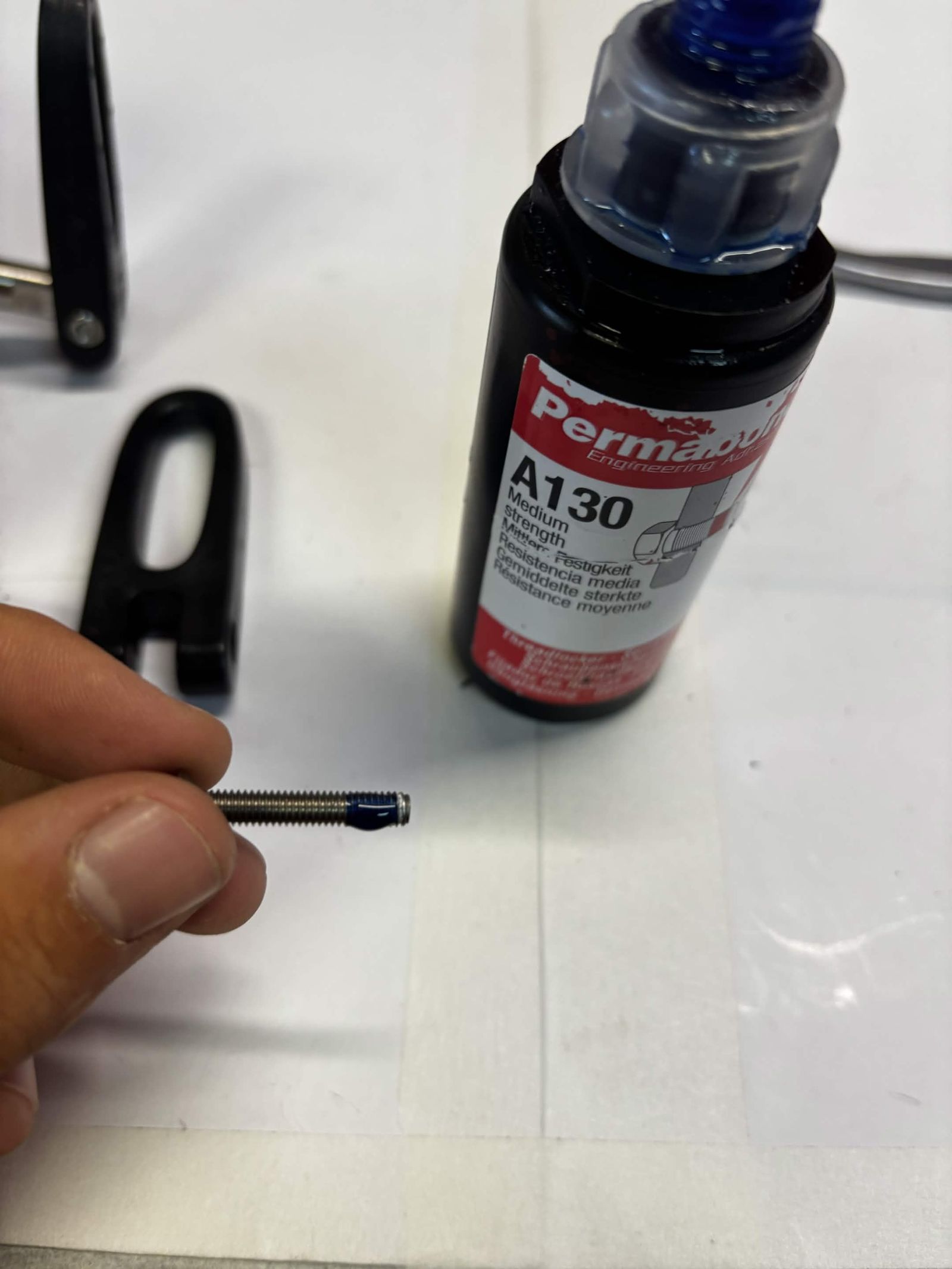

- Apply Permabond A130 to the pivot screw threads.

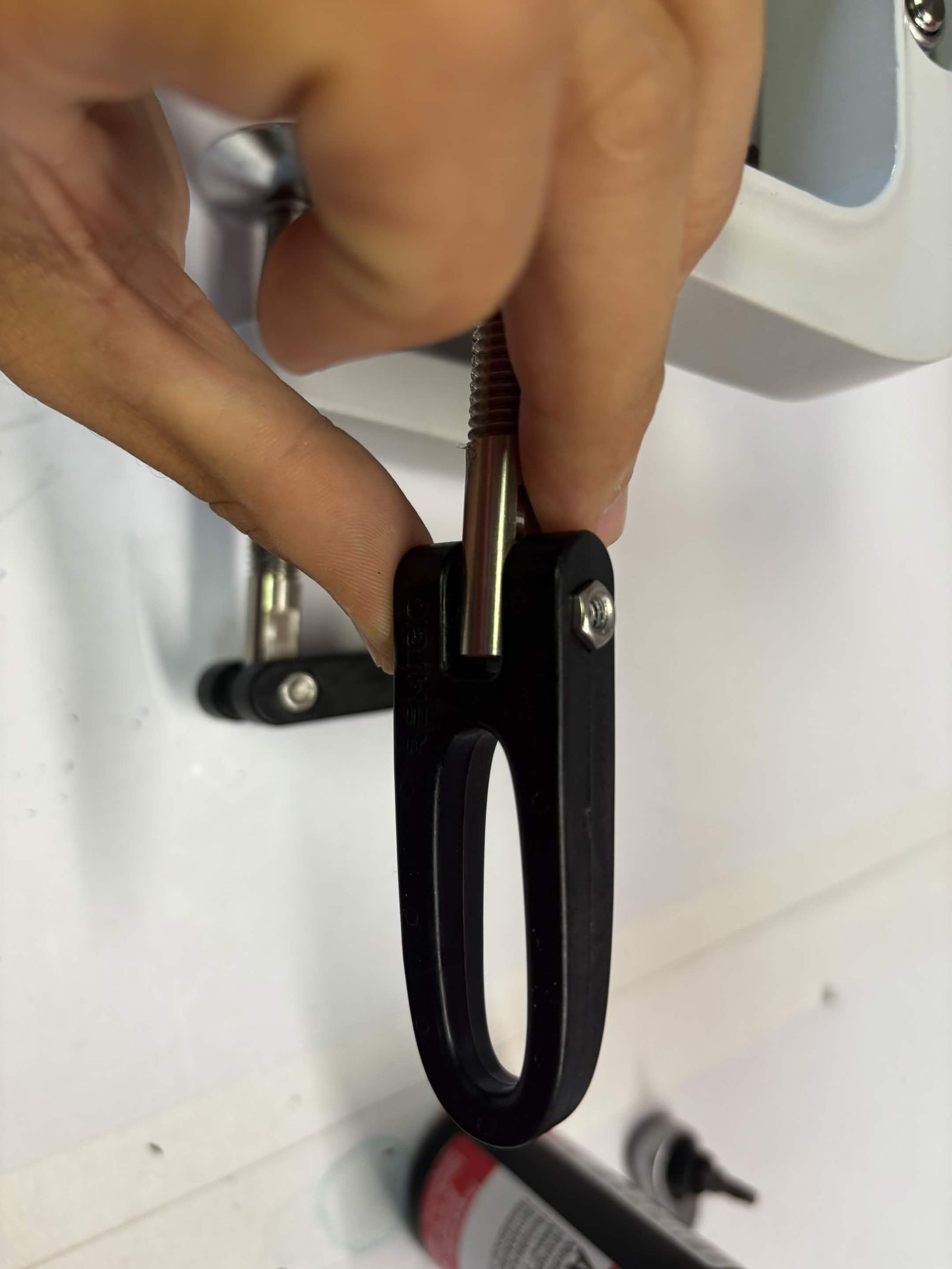

- Fit the two handle halves onto the mounting screw and install the pivot nut.

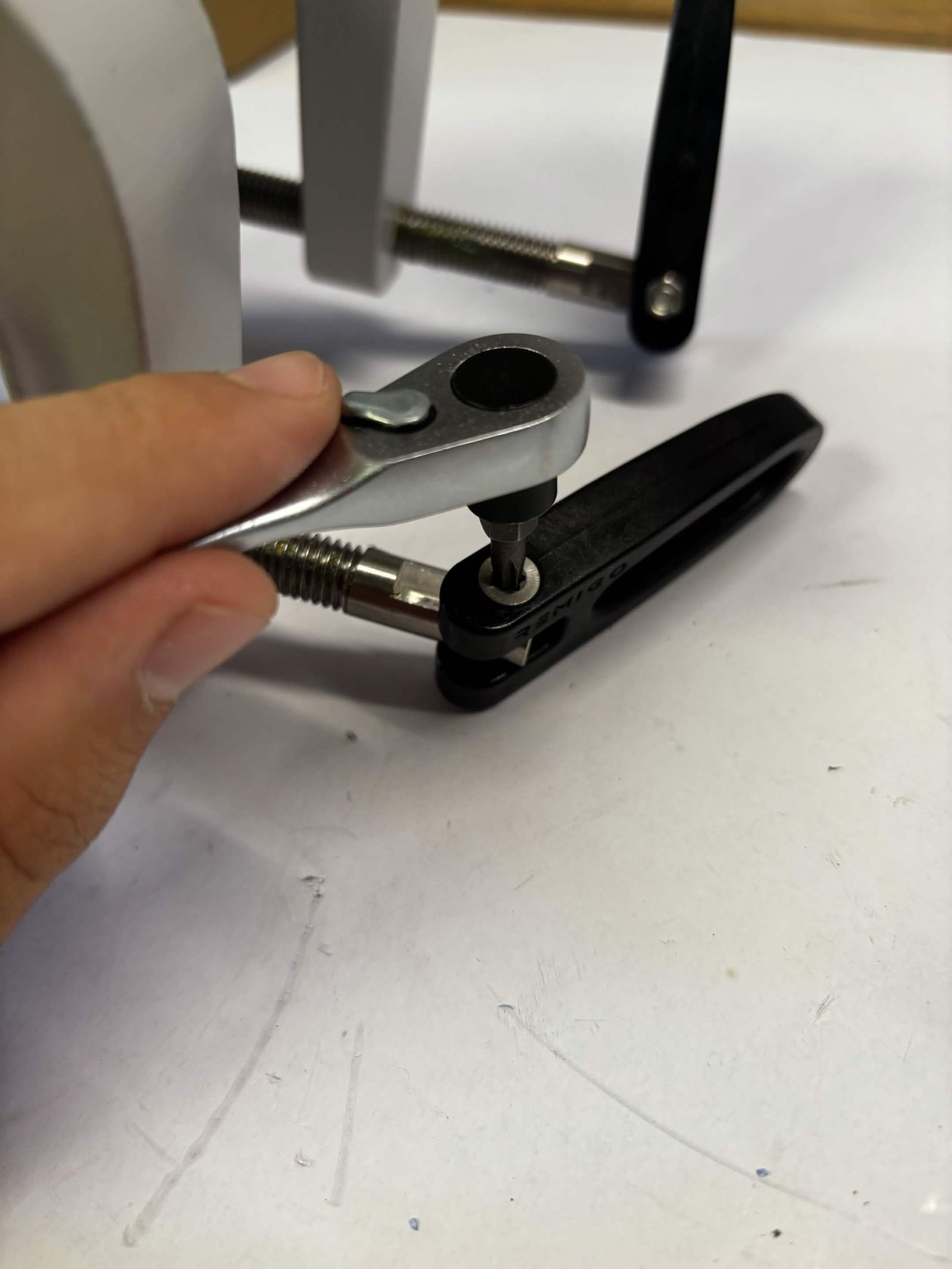

- Tighten the pivot nut with the socket wrench.
Link to originalTODO
Confirm part numbers for the mounting screw handle halves and pivot screw/nut, the exact socket/hex size, and the tightening torque value.
Color key
Blue = Disassembly · Red = Check · Green = Reassembly
